Osiris Mk2

Specifications:


Wing Span: 1.49 m (59")
Wing Area: 21.7 dm2 (336 sq. in.)
Wing Airfoil: ag455ct-02r to ag47ct-02r
Wing Loading: 13 g/dm2 (3.9 oz/sq. ft.)
Flying Weight: 270-310 g (9-11 oz)
Radio: Sub Micro servos and micro receiver recommended

3D rendering of Osiris mk2
click play once page is open
(you need eDrawing activeX to be installed)


Read these Osiris mkII reviews, courtesy of
Sport Flyer Magazine  Fly RC Magazine
Osiris mkII review  Osiris mkII review



After a long wait we finally have the Osiris Mk2 ready and we believe that it will be the finest dlg ever made. We have chosen to work with the builder of the Gladiator: J. Cermark, master craftsmen in his category, he makes the greatest moulded parts we have ever seen. So it basically takes over the original Osiris planform, but with many technical improvement, ensuring accuracy, strength, lightness and quality.
It integrates the latest knowledge in CAD/CAM and moulding technology, DLG design and construction.

Here the key features of this outstanding design:

DLG airfoil designed by Dr. Mark Drela, the wing carries the ag455 to ag47 at the tip. These airfoil have proven to be the best performing, they will cover all the speed range by using the reflex and camber change for the high speed launch to the low speed thermal flight.

Wing is hollow molded construction, integrating a high strength composite spar system. Trailing edge sub-spar, is an inflated carbon tube, providing extreme strength and complementing the torsional stiffness. Wing skin uses a so called "Disser" cloth wave technology, for again, extreme torsional stiffness. This glass cloth integrates carbon tows stitched at every 2" at 45 deg, which drastically increases the strength of the wing without adding weight.

Throw pegs are molded into each wing tips (left and right) and are actually small winglets to reduce drag. They are completely attached to the main spar structure during molding process.

Ailerons are bottom hinged, so control linkage remains inside of wing, and hinge line is  beveled at tip to reduce drag and flutter at launch.

Moulded wing saddle for perfect fit of wing to fuselage.

Fuselage is a one kind of technology, it comes all in one pieces, no pod and boom with the weak joint. This one piece fuselage is full carbon lay-up and moulded under high pressure and temperature, to ensure optimum strength and minimum weight. Transition from pod to boom is very progressive. Cockpit area is wide enough to make RC gear installation very easy.

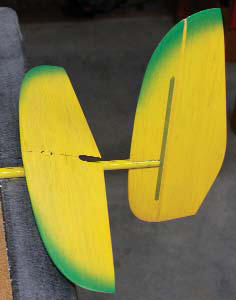

Elevator support is part of fuselage boom to facilitate assembly. Elevator can be made removable for ease of transportation.

Kit content:
All parts of the Osiris mk2 are pre-finished so very little time is required to get it into the air. The hollow molded wing is completely finished and ready to receive two sub micro servos for the ailerons. The tail surfaces are ready to cover and paint, rudder needs to be glued in place. Small hardware and instructions are completing the kit.

Osiris Mk2 ST DLG , price: 629.00U$, intro offer: 599.00U$
