DG-800S/M 3.5-4.2m

Specifications:


Wing Span: 3.5-4.2 m (137-165")
Wing Area: 63/69.7 dm2 (976 sq. in.)
Wing Airfoil: HQ 2.5/13.5-11
Wing Loading: 50-55 g/dm2 (16.5 oz/sq. ft.)
Flying Weight: 3.5 kg (123 oz)
Radio: Standard radio
Micro servos for the wings


The DG-800 from Glasser Dirks was first introduced in 1991 and is still in production. It is available with either an 18-meter wing or a 15-meter wing with tip extensions available to make an 18-meter wing.   It can be configured as a true sailplane or as a self-launching sailplane with a foldaway power unit.  ICARE is pleased to present a 1:4.3 super-scaleTM model that can be flown with either 3.5 meter with or an 4.2 meter wing much like the full-scale counterpart.

This is probably our best thermal scale ship we carry. It's light weight construction leads to a pretty low wingloading and makes it just hang in the sky. Wing construction are balsa sheeted foam covered with Oracover. Airbrakes, flaps and ailerons are ready to use. Fuselage is molded and comes with canopy fitted, with full size opening mechanism and vent window. Retract is installed and cockpit interior made.

Radio requirements are two micro servos for the ailerons, two for the airbrakes, two for the flaps, one micro for the elevator, two regular servos for the elevator and rudder. An additional servo might be installed for aerotow.

DG-800S (3.5-4.2 m) RTF super scale kit, price: 1789.00U$
DG-800M
 (3.5-4.2 m) RTF super scale kit with self launch system, inquiry for current price.

DG-800M

Super scale cockpit details

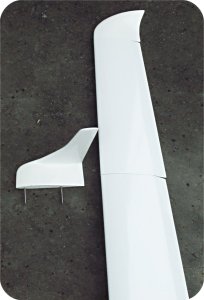

Plug in wing tips
