SportWing

Specifications:


Wing Span: 1240 mm (59")
Length: 490 mm (42.5")
Wing Area: 27.9 dm2 ( sq. in.)
Wing Airfoil: semi sym.
Wing Loading:  g/dm2 ( oz/sq. ft.)
Flying Weight: white: from 270 g (9.5 oz)
blue: from 350g (12.4 oz)
Radio: two micro servos and micro receiver
Motor: optional brushless kit

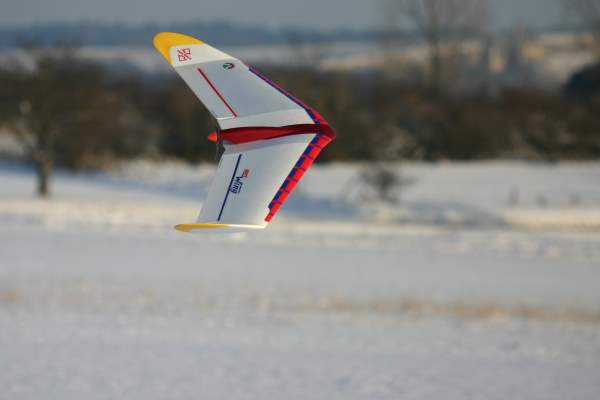

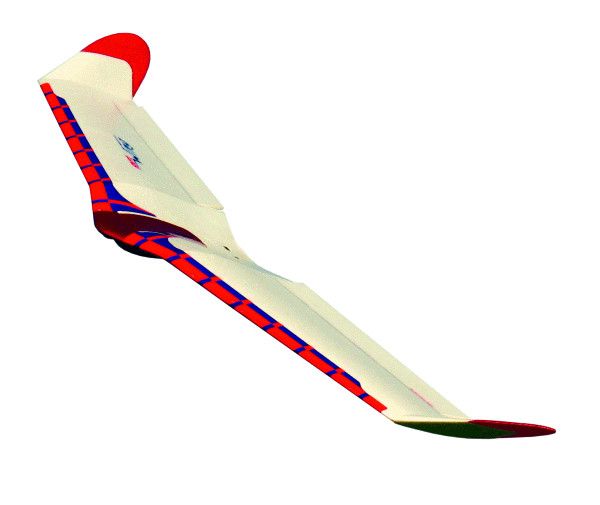

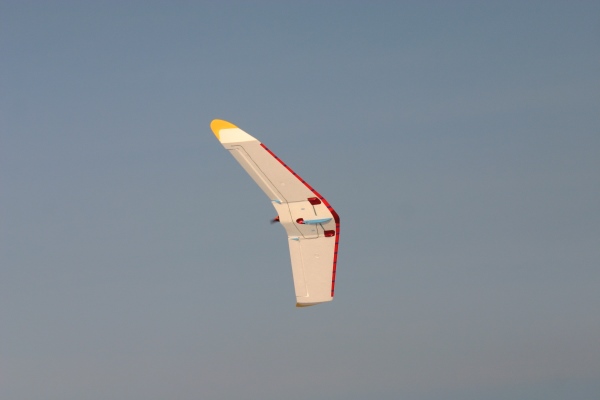

Hand launch it into a thermal and catch it back at walking pace flying speed, this flying wing will fill with enthusiasm youngster and skilled pilots. Modeler will discover new flying area like baseball fields, small soccer fields, parks or even golf course. This is a new generation of park-glider, five bend gull wing shaped planform made from resilient Flexit+ gives this flying wing an atypical shape. At only 270g (9.5oz), the white SportWing will catch easily the lightest thermal.

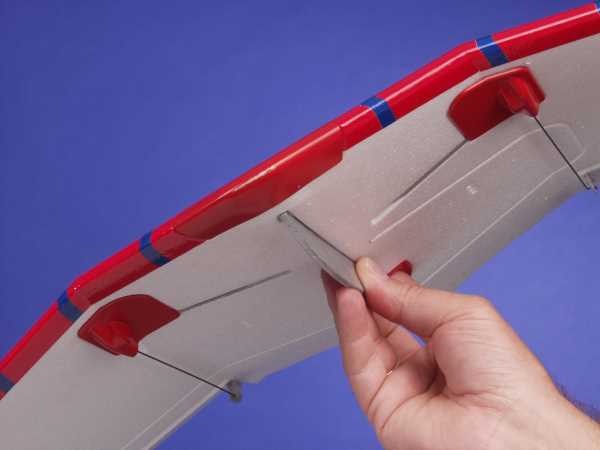

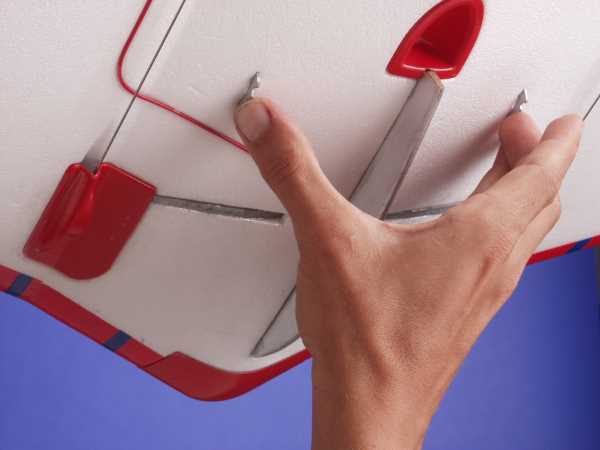

The wing is one piece molded out the highly resilient Flexit+, which is similar to EPP but lighter. Only 23 high quality parts allow an easy and fast assembly of the model. Accurate CNC machined wood and thermoformed parts facilitate its construction. A large decal set will cover the whole leading edge providing a great look to the design and giving additional protection.

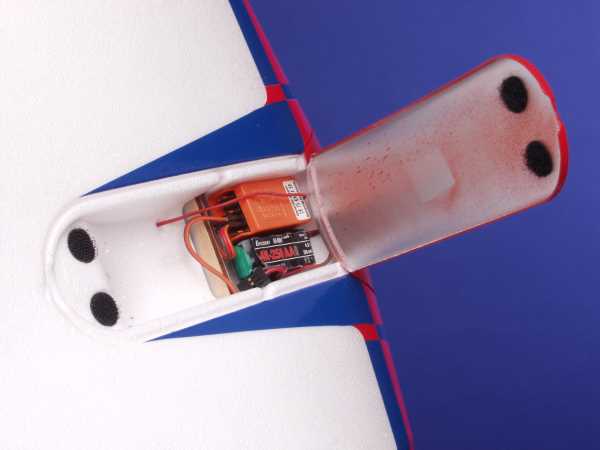

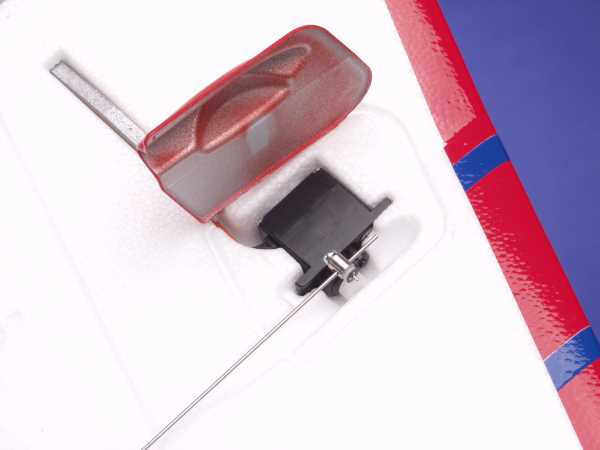

Final assembly requires only two sub-micro servos and a receiver with battery, and the model is ready to go. The SportWing white is easily converted to electric and so widens its application possibilities. Other options which were made successfully is aerotowing with a powered parkflyer, or bungee start with a light upstart.

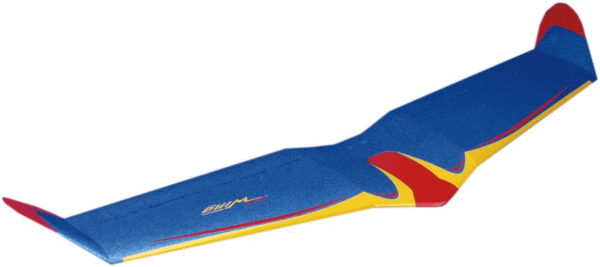

For hard slope flying the SportWing blue is made out of heavy EPP (about 20% heavier), which makes it very durable. The additional weight will allow it to fly in strong winds and it will withstand the rough landings. (The SportWing blue is not suited for electric conversion, due to the mass distribution of the heavier foam it is difficult to achieve the proper CG with the electric setup).

See all what the SportWing can do on this video

SportWing white or blue, Price: 145.00U$

SportWing white combo, wing + mini-brushless + carry bag: 340.00U$ (save 26.00U$)

Additionnal accessories:

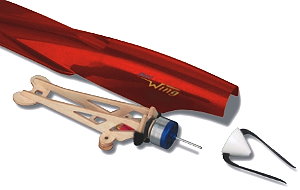

Mini-brushless setup (appr. 50W)
mini-outrunner w/extra long shaft, CNC ply machined motor mount, folding prop und thermoformed, painted and CNC cut motor cover.
Price: 199.00U$

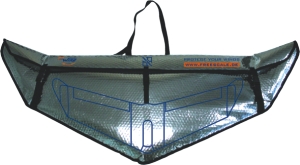

SportWing protective carry bag, made from aluminum cushioned material.
Makes transportation easy on shoulder and protects against strong sunshine.
Price: 38.00U$
