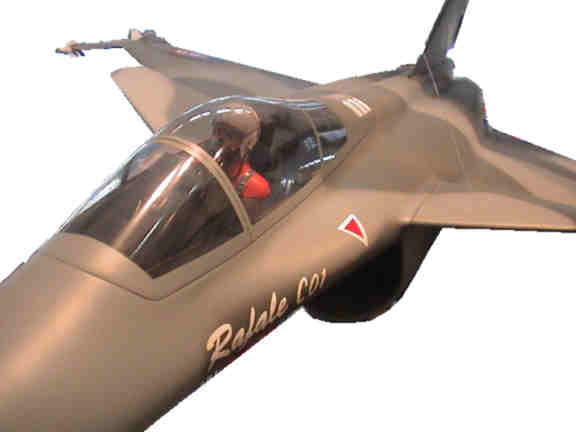

Dassault Rafale C01

Specifications:


Wing Span: 1.34 m (52")
Length: 1.04 m (40")
Wing Area: 41 dm2 (635 sq. in.)
Flying Weight: Kevlar kit: 3.2 kg (112 oz)
FG kit: 2.8 - 4.0 kg (98 - 141 oz)
Radio: Standard functions are separate elevators and ailerons, plus motor speed controller, although a working rudder can also be fitted. As standard the canards are fixed, but experienced modellers will be able to fit an actuation system.
Motor 2 EDF Turbo Fan 1000  or
1 EDF Turbo Fan 4000
6 - 10 S LiPo cells

See in flight video here

Retractable landing gear video

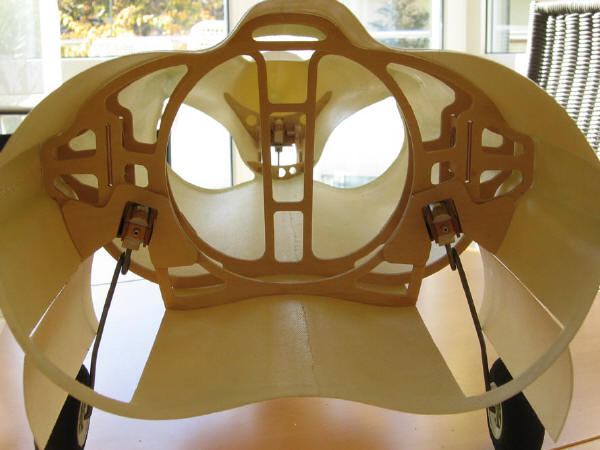

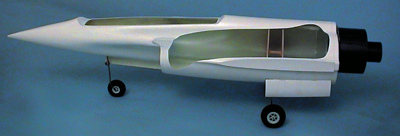

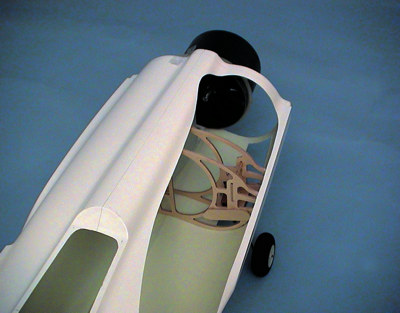

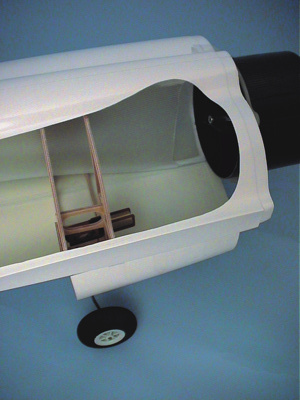

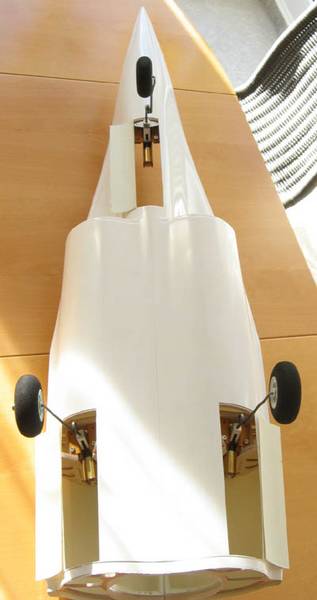

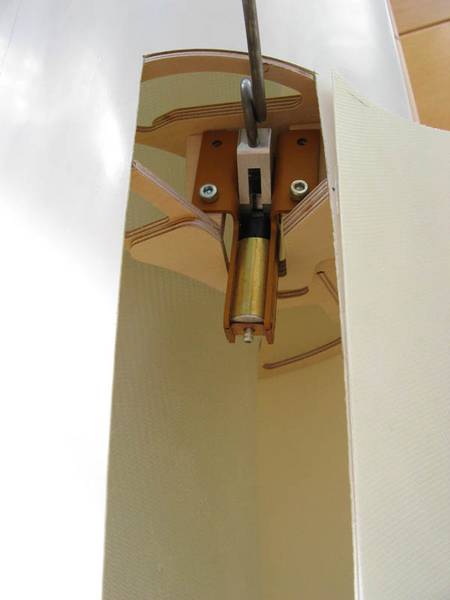

Rapid progress in electric model power technology now allows us to offer the Rafale in a version with retractable undercarriage. In this form it is now capable of ground take-off from level, closely mown grass strips as well as from hard surfaces. The net result with this twin-engined aircraft is much greater scale fidelity both on the ground and in the air. A matching 3-part pneumatic retractable undercarriage with steerable nose wheel is available as an accessory set. The update is completed by a new fuselage, molded in Kevlar fiber for extremely low weight (Kevlar kit) or molded in fiberglass (FG kit); it offers maximum strength and contributes to the Rafaleís phenomenal flight performance. All formers required for the retract system installation are pre-cut using CAD data, and are supplied in the set.

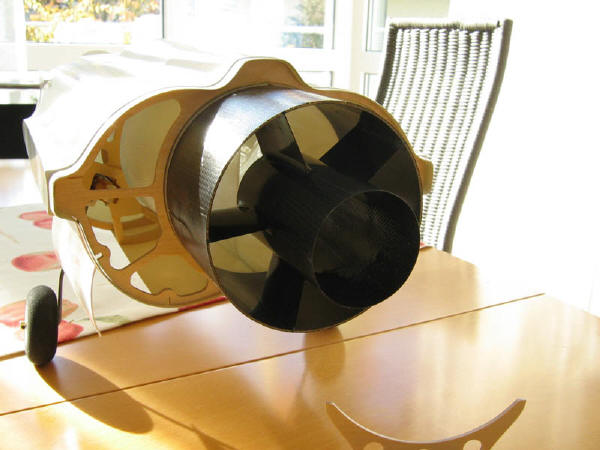

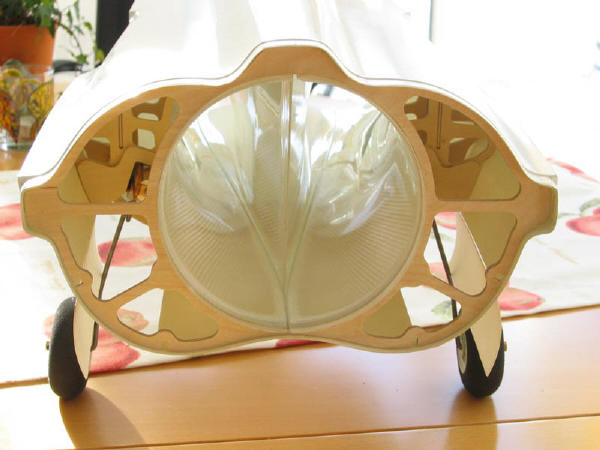

The key factor in making this new version feasible is a completely new power system concept. The previous system consisted of two relatively small ducted fans, which are now replaced by a single, highly efficient 120 mm impeller unit. This all-carbon electric fan is a completely new development, and generates up to 40 N static thrust with a suitable motor. The single motor and fan mean that the overall cost is lower than the previous arrangement, even when power system components of the highest possible quality are employed.

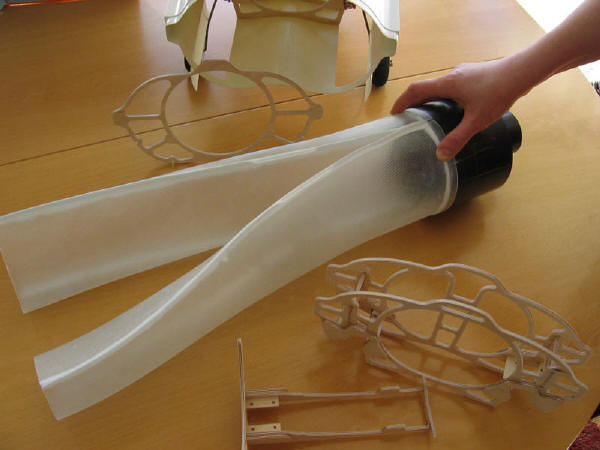

The recommended power plants are the Kontronik Tango 45-08 with 28 GP-3000 or GP-3300 cells, the Tango 45-07 with 30 cells or the top Plettenberg HP370/40/A1. With either motor the fan system spins at 22,000 rpm and produces a thrust of around 36 N at an input power of approximately 1650 W. With the HP motor thrust of over 45N can be expected with over 2kW input. As was the case with the original twin-fan Rafale, the two-part fuselage makes it easy to install and maintain the impeller system. The kit includes finished, accurately made FG bifurcated pipes of refined aerodynamic form which are responsible for the efficient flow of air from the intakes to the fan unit, and from the fan to the divided efflux.

Dassault Rafale C01, single fan Kevlar kit (ref 1358/00), price:  559.00 U$,
on sale at 499.00 U$

Optional pneumatic retract, price: 139.00U$

Suggested power package, consisting of:
(1)  Turbo Fan 4000 (125mm dia)
(1)  Plettenberg HP 370/40/A1 S
(1)  Schulze fut 32.80K speed control
(1)  PQ 10S 4200mAh LiPo pack
