Diesel Engines




Vintage and Replica Diesel engine



PN Description Price U$ Sale U$
10050 MPJet .040 PB Classic Diesel Engine 85.00 77.00
  Super Atom 1.8 replica, limited series production 129.00
  Letmo MD-2.5 replica, limited series production 125.00
10100 MP JET .061 BB diesel 110.00 105.00
10101 MP JET .061 BB RC diesel 135.00 129.00

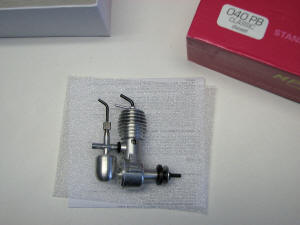

MP Jet .040 PB Classic diesel engine

Specifications:
Bore: 8mm 0.314”
Stroke: 12mm 0.472”
Swept Volume:  0.603ccm 0.037cu-in
Weight: 50g 1.76oz
Recommended rpm: 5000-10000 r.p.m.
Recommended prop: 7” x 3” – 8” x 4”

The MP Jet .040 PB Classic is a functional replica inspired from post War engines. A two stroke diesel engine equipped with integral tank, a piston controlled compression, long stroke type, single transfer and two sides exhaust ports. Thanks to this concept the engine is easy to start, has high torque under low rpm, runs smooth with very low noise. All these features makes it a great candidate for free flight models like the SAM category, or historical RC models and also any current airplane. It will last for ever. The engine is equipped with a fuel tank suitable for short Free or RC flight.

MP Jet .040 PB Classic diesel engine, price: 85.00 U$, sale 77.00 U$


Super Atom 1.8 diesel engine Replica

Specifications:
Bore: 12mm 0.472”
Stroke: 16mm 0.629”
Swept Volume:  1.81ccm 0.11 cu-in
Weight: 127g 4.47oz
Recommended rpm: 4000-6500 r.p.m.
Recommended prop: 11"x5" -- 12” x 5”

This engine is replica of the original engine SUPER ATOM 1,8 from Mr.Vladimνr Hruška, Czechoslovakia. The SUPER ATOM 1.8 rose from the first small batch of ATOM 1,8 made at the end of 1945. The design of the engine is a typical first postwar, long stroke, self ignition, plain bearing, piston controlled combustion, "T" type side scavenging, three axial attachment lug type crankcase. This new replica is practically the same engine as the original SUPER ATOM 1,8  except for following: heat treated crankshaft (the original was made from silver mild steel) and cylinder liner (the original liner was from meehanite, the original piston was from tool hardened steel with aluminum alloy thread insert). The new liner is from nitro carburized steel and hardened, the piston is from a special meehanite. The other change is the new shape of the window in liner wall. The reason to this is a better starting and higher power. These engines are produced on modern CNC machines like any standard MP JET engines. These engines are produced in a 500 pieces limited series, each engine has his serial number (on the rear side of the crankcase). Engine spare parts parts are currently available, the replacement of crankcase will only be done by an exchange of the old damaged one.

Super Atom 1.8 diesel engine, price: 129.00 U$


Letmo MD-2.5 Diesel Engine Replica

Specifications:
Bore: 13.5mm 0.531”
Stroke: 17.7mm 0.696”
Swept Volume:  2.49ccm 0.15cu-in
Weight: 145g 5.11oz
Recommended rpm: 4000-8000 r.p.m.
Recommended prop: 11"x6" -- 11” x 7”

This engine is a replica of the original engine Letmo md-2.5 of M. Pfeffer from Brno, Czech Rep. The Letmo MD-2.5 rose from the Letmo MD-3 engine to compete against. The design of the engine is a typical first postwar, long stroke, self ignition, plain bearing, piston controlled combustion, "T" type side scavenging, three axial attachment lug type crankcase. The new replica is practically the same engine as the original M Pfeffer's Letmo except for following: heat treated crankshaft (the original was from mild steel) and cylinder liner (the new is nitro carburized, the original was standard hardened tool steel). The other change is the new shape of the window in liner wall. The reason to this is a better starting and higher power. These engines are produced on modern CNC machines like any standard MP JET engines. These engines are produced in a 1000 pieces limited series, each engine has his serial number (on the rear side of the crankcase). Engine spare parts parts are currently available, the replacement of crankcase will only be done by an exchange of the old damaged one.

Letmo MD-2.5 diesel engine, price: 125.00 U$


MP JET .061 BB (RC) Diesel

Specifications:
Bore: 11mm 0.433”
Stroke: 10.45mm 0.411”
Swept Volume:  0.993ccm 0.061 cu-in
Weight: 94g 3.3oz
Recommended rpm: 12000-18000 r.p.m.
Recommended prop: 7" x 3" -- 6” x 4”

The MP Jet .061 BB is a high performance output diesel engine. A two stroke diesel engine intake by its crankshaft. Supported on two ball bearings, Schnuerle scavenging with three transfer port.

Available in standard or with RC carburetor version:

MP Jet .061 BB Diesel, price: 105.00 U$

MP Jet .061 BB RC Diesel, price: 129.00 U$
