Super Dimona


Super Dimona

Specifications:


Wing span: 2.12 m (83")
Length: 1.0 m (39")
Wing Area: 35.38 dm2 (548 sq. in.)
Wing Airfoil: Flat bottom
Wing Loading: 36 g/dm2 (13 oz/sq. ft.)
Flying Weight: 1300 g (51 oz)
Radio: Sub-micro servos and micro receiver recommended
Motor Speed 400 Geared
Plettenberg Freestyle 24

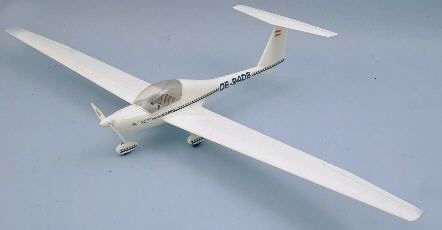

Neat semi-scale reproduction of a two seater motor glider (side by side). Designed for Speed 400 geared drive system or brushless motor. The kits comes as an ARC kit, with a light weight white fuse, built balsa wings ready to cover and all little moulded fibreglass bits to complete it. Instructions included.

Radio requirement are four sub-micro servos for the aileron and for the elevator and rudder. Speed 400 6V geared motor , 8 x 6 to 9 x 5 prop, motor controller and 8-10 KAN1050 battery pack or 3S1P LiPo are required.

The Super Dimona is the high aspect ratio wing version and spans 2120 mm (83") for almost the same weight.

Upon request ICARE will offer a special combo where you get with the kit you get a complete power package, including motor, motor controller, prop, prop adapter and battery pack.

Super Dimona ARC motor glider, price: 329.00 U$
