BMS-303
|
Weight: |
3.7 g (0.14 oz) with no wire |
 |
|
Size: |
19 x 7.5 x 15.5 mm (0.75 x 0.29 x
0.61 inch) |
|
Speed: |
0.11 sec / 60 deg at 4.8 V |
|
Torque: |
0.7 kg/cm (11 oz/in) at 4.8 V |
|
Ball bearing: |
none |
|
Motor type: |
Coreless motor |
|
Plug type: |
JR universal |
|
Price: |
17.95
$ US |
BMS-306
|
Weight: |
6.2 g (0.21 oz) |
 |
|
Size: |
22 x 10 x 23 mm (0.86 x 0.4 x 0.9
inch) |
|
Speed: |
0.11 sec / 60 deg at 4.8 V |
|
Torque: |
0.8 kg/cm (12 oz/in) at 4.8 V |
|
Ball bearing: |
none |
|
Plug type: |
JR universal |
|
Price: |
14.00
$ US |
BMS-308BB
|
Weight: |
6.6 g (0.22 oz) |
 |
|
Size: |
22 x 10 x 23 mm (0.86 x 0.4 x 0.9
inch) |
|
Speed: |
0.10 sec / 60 deg at 4.8 V |
|
Torque: |
1.2 kg/cm (17 oz/in) at 4.8 V |
|
Ball bearing: |
included |
|
Plug type: |
JR universal |
|
Price: |
16.50$ US |
BMS-371
|
Weight: |
8.4 g (0.30 oz) |
 |
|
Size: |
24 x 11 x 24 mm (0.96 x 0.43 x 0.99
inch) |
|
Speed: |
0.12 sec / 60 deg at 4.8 V |
|
Torque: |
1.5 kg/cm (21 oz/in) at 4.8 V |
|
Ball bearing: |
none |
|
Plug type: |
JR universal |
|
Price: |
13.50$ US |
BMS-380MAX
|
Weight: |
16.4 g (0.58 oz) |
 |
|
Size: |
26 x 13 x 26 mm (1.16 x 0.51 x 1.02
inch) |
|
Speed: |
0.16 sec / 60 deg at 4.8 V |
|
Torque: |
4.2 kg/cm (57 oz/in) at 4.8 V |
|
Ball bearing: |
yes |
|
Gear: |
metal |
|
Plug type: |
JR universal |
|
Price: |
26.25
$ US |
TS-1002
|
Weight: |
4.7 g (0.16 oz) |
 |
|
Size: |
21.6 x 8 x 17.7 mm (0.85 x 0.31 x 0.69
inch) |
|
Speed: |
0.14 sec / 60 deg at 4.8 V |
|
Torque: |
1.1 kg/cm (15 oz/in) at 4.8 V |
|
Ball bearing: |
none |
|
Gear: |
resin |
|
Plug type: |
JR universal |
|
Price: |
22.50
$ US |
TS-1014
|
Weight: |
9.0 g (0.31 oz) |
 |
|
Size: |
24 x 9 x 27 mm (0.94 x 0.31 x 1.06
inch) |
|
Speed: |
0.16 sec / 60 deg at 4.8 V |
|
Torque: |
2.0 kg/cm (27 oz/in) at 4.8 V |
|
Ball bearing: |
none |
|
Gear: |
resin |
|
Plug type: |
JR universal |
|
Price: |
22.50
$ US |
TS-6011
Carbonite gear, digital programmable servo.
|
Weight: |
8 g (0.28 oz) |
 |
|
Size: |
22 x 9 x 22.8 mm (0.86 x 0.31 x 0.89
inch) |
|
Speed: |
0.14 sec / 60 deg at 4.8 V |
|
Torque: |
2.0 kg/cm (27 oz/in) at 4.8 V |
|
Ball bearing: |
dual |
|
Gear: |
resin |
|
Plug type: |
JR universal |
|
Price: |
28.50
$ US |

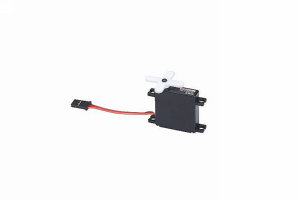

DES-448 MG Digital
|
Weight: |
19 g (0.67 oz) |
 |
|
Size: |
31.5 x 9.5 x 33 mm (1.24 x 0.37 x 1.29
inch) |
|
Speed: |
0.10 sec / 40 deg at 4.8 V |
|
Torque: |
4.2 kg/cm ( oz/in) at 4.8 V |
|
Ball bearing: |
yes |
|
Gear: |
metal |
|
Plug type: |
JR universal |
|
Price: |
55.00 U$ |

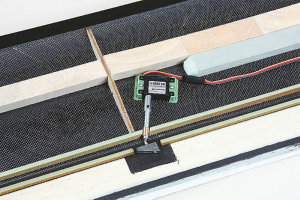

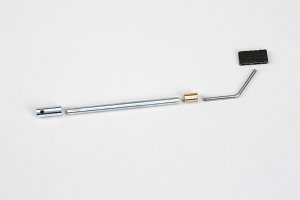

RDS -for DES 448
Description
- Suitable for Graupner wing
servo DES 448 BB, MG #7914
- Aluminum adaptor for servo
drives, 9 x 22 mm
- Aluminum retainer for
steel link, adjustable length, 6 x 100 mm
- Brass socket holds
aluminum retainer 8 x 12 mm
- Hardened steel link,
adjustable length, 3 x 30 x 30 mm 50°
- Carbon fibre pouch for
steel link, adjustable form, 26 x 12 x 4 mm
Price, ea.: 19.50 U$
 |
