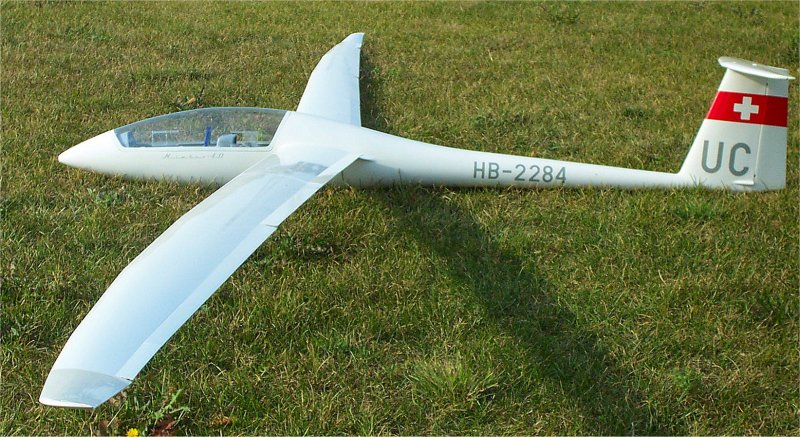

Nimbus 4D/4DM 5.2m

Specifications:


Scale: 1:5
Wing Span: 5.2 m (204")
Length: 1.7 m (67")
Wing Area: 74 dm2 (1147 sq. in.)
Wing Airfoil: HQ 3/15 - HQ 2.5/10
Wing Loading: 61 g/dm2 (20 oz/sq. ft.)
Flying Weight: 4.5 kg (158 oz)
Radio: Standard radio.
Micro and mini servos for the wings.


The Nimbus 4D is the current open class super two seater design in production by Schempp-Hirth in Germany. It is the successor to the earlier 24.6 m Nimbus 3D. The six piece (26.5 m span) Discus plan form wing has full span camber changing flaperons. It has a glide ratio of about 60. It's particular look with the triple taper leading edge and forward swept wings is really graceful in the air. We offer here a 1:5 (5.3 m span) all glass super-scale reproduction, of this very high performance glider.

Fully outfitted cockpit

One of our nicest super scale glider. This 1:5 scale Nimbus 4D comes with the cockpit completely finished. The canopy is hinged sidewise like the real one, the sliding windows are installed and working, the canopy locking mechanism is installed and accessible through the rear window, the instrument mushrooms have the instruments details already inserted, control sticks, seat belts, cushionning and a camera are included. The kit comes with hollow moulded wings, in two pieces each side and are very accurately reproduced. Flaps are in two pieces as the ailerons are. The HQ airfoil has very smooth flying characteristics. Aerotow at his bests. It has a graceful thermalling capability, and the wings are strong to withstand some abuse. Not suited for aerobatics though. Adequate construction of the wings shows realistic flex and curvature in the air.

With this super scale glider, only a few hours are required, before completion. The wings are hollow moulded as any other surface (rudder, elevator). Airbrakes are installed and ready to be connected by the mean of a micro servo in the wing. The high gloss, gel coated Fiberglas fuselage has the wing joiner carrying tubes and the rudder control tube installed. Aside the functional retract, the tail and nose wheel are installed. A functional tow release is installed as well. A small package hardware and building instructions are completing the kit.

Radio requirements are two micro servos for the ailerons, two for the flaps and two additional micro servos for the airbrakes. Four regular servos for the elevator, rudder, retract, and tow release.

Nimbus 4D super scale FG  RTF kit, price: N/A
Nimbus 4DM
(5.2 m) FG super scale RTF self launch glider kit, price: inquiry
