ACn 16/15


ACn 16/15/1 ACn 16/15/2 ACn 16/15/3 ACn 16/15/4
ACn 16/15/4 COMBAT ACn 16/15/5 ACn 16/15/6 ACn 16/15/7
ACn 16/15/7 COMBAT ACn 16/15/8 Dimensions

ACn 16/15/1

The ACn 16/15 sizes are direct replacements for Speed 400 and Speed 480 brushed motors. Motorīs fasting is done by: 2 screws M 3.

Specification
Weight 76 g
No load current Io 6
Size 28x36 φ x L mm
No load 9600 RPM/V
Resistance 4
Max. current 40 A
Number of cells
Max. diameter 28 mm
Aerobatic airplane min. weight
Aerobatic airplane max. weight
Recommended propeller for aerobatic airplane
Recommended controller for aerobatic airplane
Ratio 1:1
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min
Recommended controller 40 A

ACn 16/15/2

Itīs designed especially for direct drive of models with ducted fans with 7-8 or 10 cells NiCd (or NiMh). Use of electromotor MEGA ACn 16/15/2: ducted fans 50 – 75 mm, small and quick model.

The ACn 16/15 sizes are direct replacements for Speed 400 and Speed 480 brushed motors. Armature of this motor is made from hardened steel with Kevlar wrapped magnets. Motorīs fasting is done by: 2 screws M 3. Efficiency is 88 %, max speed: 55 000 revolution/min.

Specification
Weight 76 g
No load current Io 2.97
Size 28x36 φ x L mm
No load 4600 RPM/V
Resistance 6 mΩ
Max. current 35 A
Number of cells 4 - 10
Max. diameter 28 mm
Aerobatic airplane min. weight 0.30 kg
Aerobatic airplane max. weight 0.90 kg
Recommended propeller for aerobatic airplane impeller 75 mm
Recommended controller for aerobatic airplane 35 A
Ratio 1:1
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min
Recommended controller 30-40 A

ACn 16/15/3

Itīs designed especially for direct drive of model with ducted fans with 7-8 or 10 cells NiCd (or NiMh) or for pylons model. The ACn 16/15 sizes are direct replacements for Speed 400 and Speed 480 brushed motors. Use of electromotor MEGA ACn 16/15/3: ducted fans 50 – 75 mm, pylon model, small and quick model.

Armature of this motor is made from hardened steel with Kevlar wrapped magnets. Motorīs fasting is done by: 2 screws M 3. Efficiency is 88 %, max speed: 55 000 revolution/min.

Specification
Weight 76 g
No load current Io 1.7
Size 28x36 φ x L mm
No load 3000 RPM/V
Resistance 13,5 mΩ
Max. current 30 A
Number of cells 4 - 10
Max. diameter 28 mm
Aerobatic airplane min. weight 0.30 kg
Aerobatic airplane max. weight 0.80 kg
Recommended propeller for aerobatic airplane impeller 75 mm
Recommended controller for aerobatic airplane 30 A
Ratio 1:1
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min
Recommended controller 30-40 A

ACn 16/15/4

Itīs designed especially for direct drive of small and quick models as for example F16 and others from EPP. The ACn 16/15 sizes are direct replacements for Speed 400 and Speed 480 brushed motors. Use of electromotor MEGA ACn 16/15/4: small and quick models, glider (MEGA Acn 16/15/4 with Gearbox MEGA GEAR 16), 3D flying (MEGA Acn 16/15/4 with Gearbox MEGA GEAR 16.

Armature of this motor is made from hardened steel with Kevlar wrapped magnets. Motorīs fasting is done by: 2 screws M 3. Efficiency is 88 %, max speed : 55 000 revolution/min.

Specification
Weight 76 g
No load current Io 1.1
Size 28x36 φ x L mm
No load 2200 RPM/V
Resistance 22,5 mΩ
Max. current 20 A
Number of cells 4 - 16
Max. diameter 28 mm
Aerobatic airplane min. weight 0.30 kg
Aerobatic airplane max. weight 0.80 kg
Recommended propeller for aerobatic airplane 6,5x4
Recommended controller for aerobatic airplane 18 A
Ratio 1:1
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min
Recommended controller 18 A

ACn 16/15/4 COMBAT

Electromotors MEGA ACn 16/15/4 COMBAT come from already known group of brushless electromotors MEGA ACn 16/15. The COMBAT form is designed and recommended for models, which must resist to high mechanical load. It is ideal for pylon models and for models without undercarriage. The shaft of theese motors is specially adjusted; its diameter is 5 mm and itīs made of hardened steel.

Rotors of MEGA AC 16/15 motors of all types are now axially spring-loaded to asure maximal care and protection of the ballbearing.

MEGA ACn 16/15/4 COMBAT is designed especially:
- For quick models (pursuit plains/ fighters) without undercarriage, for higher prop and shaft load during landing, as well as for models for standard flying.
- Quick model's drive - pursuit plains/ fighters – from EPP up to 1 kg

Fore More detailed technical information and recommendations, see ACn 16/15/4 specifications.

ACn 16/15/5

Itīs designed especially for direct drive of small and quick models from EPP and motorplanes.
MEGA Acn 16/15/5 is a new motor with weight of 76 g (1800 rpm / 1V). The ACn16/15 sizes are direct replacements for Speed 400 and Speed 480 brushed motors. Use of electromotor MEGA 16/15/5: pylon model, small and quick models from EPP, motorplanes (aerobatics planes), gliders (MEGA Acn 16/15/5 with Gearbox MEGA GEAR 16).

Armatures of this motor are made from hardened steel with Kevlar wrapped magnets. Motorīs fasting is done by: 2 screws M 3. Efficiency is 88%, max speed: 55 000 revolution/min.

Specification
Weight 76 g
No load current Io 0.8
Size 28x36 φ x L mm
No load 1800 RPM/V
Resistance 56 mΩ
Max. current 20 A
Number of cells 4 -16
Max. diameter 28 mm
Aerobatic airplane min. weight 0.30 kg
Aerobatic airplane max. weight 0.80 kg
Recommended propeller for aerobatic airplane 6,5x4
Recommended controller for aerobatic airplane 18 A
Ratio 1:1
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min
Recommended controller 18 A

ACn 16/15/6

Itīs designed especially for direct drive of small and quick models - motorplanes (aerobatics planes) with weight up to 0,9 kg as direct drive with 6, 7 or 8 cells. MEGA Acn 16/15/6 is a new motor with weight of 76 g (1500 rpm / 1V). The ACn 16/15 sizes are direct replacements for Speed 400 and Speed 480 brushed motors. Use of electromotor MEGA 16/15/6: quick models, motorplanes (aerobatics planes), smaller glider.

Armature of this motor is made from hardened steel with Kevlar wrapped magnets. Motorīs fasting is done by: 2 screws M 3. Efficiency is 88 %, max speed: 55 000 revolution/min.

Specification
Weight 76 g
No load current Io 0.65
Size 28x36 φ x L mm
No load 1500 RPM/V
Resistance 56 mΩ
Max. current 18 A
Number of cells 4 - 16
Max. diameter 28 mm
Aerobatic airplane min. weight 0.30 kg
Aerobatic airplane max. weight 0.90 kg
Recommended propeller for aerobatic airplane 7x7
Recommended controller for aerobatic airplane 12 A
ratio 1:1
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min
Recommended controller 12-18 A

ACn 16/15/7

MEGA ACn 16/15/7 is a new motor with weight of 76 g (1300 ot/min/ 1V). Itīs designed especially for direct drive of motorplanes with 7-8 cells NiCd (or NiMh) or for direct drive of glider with 7-8 cells NiCd (or NiMH) or 2 cells Li-Pol. The ACn 16/15 sizes are direct replacements for Speed 400 and Speed 480 brushed motors. Use of electromotor MEGA ACn 16/15/7: motorplanes (aerobatics planes) up to 1 kg (up to 0,8 kg), glider with 7-8 cells NiCd (or NiMH) up to 1,2 kg, bigger PARK FLYER, for 3D flying for models.

Armatures of this motor are from hardened steel with Kevlar wrapped magnets.

Specification
Weight 76 g
No load current Io 0.50
Size 28x36 φ x L mm
No load 1300 RPM/V
Resistance 65,5 mΩ
Max. current 16 A
Number of cells 4 - 16
Max. diameter 28 mm
Electric sailplane min. weight 0.30 kg
Electric sailplane max. weight 1.20 kg
Aerobatic airplane min. weight 0.30 kg
Aerobatic airplane max. weight 0.80 kg
Recommended propeller for electric sailplane 8,5x5
Recommended controller for electric sailplane 10 A
Recommended propeller for aerobatic airplane 8,5x5
Recommended controller for aerobatic airplane 10 A
Ratio 1:1
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min
Recommended controller 18 A

ACn 16/15/7 COMBAT

Electromotors MEGA ACn 16/15/7 COMBAT come from already known group of brushless electromotors MEGA ACn 16/15. The COMBAT form is designed and recommended for models, which must resist to high mechanical load. It is ideal for pylon models and for models without undercarriage. The shaft of theese motors is specially adjusted; its diameter is 5 mm and itīs made of hardened steel.

Rotors of MEGA AC 16/15 motors of all types are now axially spring-loaded to asure maximal care and protection of the ballbearing.

MEGA ACn 16/15/7 COMBAT is designed for models without undercarriage and for models used for air fights / chopping off or cutting off the ribbon etc …flying wings…./ as well as for models for standard flying.

Fore More detailed technical information and recommendations, see ACn 16/15/7 specifications.

ACn 16/15/8

ACn 16/15/8 is a new motor with weight of 76 g (1250 ot/min/ 1V). Itīs designed especially for direct drive of for direct drive of Glider up to 1,2 kg with 7-8 cells NiCd (or NiMH) or 2 cells Li-Pol. The ACn 16/15 sizes are direct replacements for Speed 400 and Speed 480 brushed motors. Use of electromotor MEGA ACn 16/15/8: glider with 7-8 cells NiCd (or NiMH) up to 1,2 kg, bigger PARK FLYER, 3D flying models.

Armature of this motor is made from hardened steel with Kevlar wrapped magnets. Motorīs fasting is done by: 2 screws M 3. Efficiency is 88 %, max speed: 55 000 revolution/min.

Specification
Weight 76 g
No load current Io 0.45
Size 28x36 φ x L mm
No load 1250 RPM/V
Resistance 88 mΩ
Max. current 15 A
Number of cells 4 - 16
Max. diameter 28 mm
Electric sailplane min. weight 0.30 kg
Electric sailplane max. weight 1.20 kg
Aerobatic airplane min. weight 0.30 kg
Aerobatic airplane max. weight 1.00 kg
Recommended propeller for electric sailplane 8,5x5
Recommended controller for electric sailplane 8 A
Recommended propeller for aerobatic airplane 7x7
Recommended controller for aerobatic airplane 12 A
Ratio 1:1
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min
Recommended controller 12-18 A

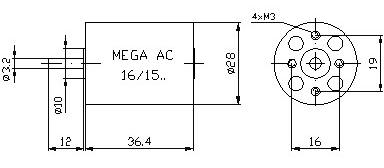

Dimensions
