ACn 16/7


ACn 16/7/5 ACn 16/7/6 ACn 16/7/7 ACn 16/7/8
ACn 16/7/10 ACn 16/7/12 ACn 16/7/17 Dimensions

ACn 16/7/5

Specification
Weight 48 g
No load current Io 1.3
Size 28x30 φ x L mm
No load 3450 RPM/V
Max. current 16 A
Current at max. efficiency 1,8 - 16 A
Number of cells 4 - 24
Max. diameter 28 mm
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min

ACn 16/7/6

Specification
Weight 48 g
No load current Io 0.9
Size 28x30 φ x L mm
No load 2850 RPM/V
Max. current 15 A
Current at max. efficiency 1,8 - 15 A
Number of cells 4 - 24
Max. diameter 28 mm
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min

ACn 16/7/7

Specification
Weight 48 g
No load current Io 0.9
Size 28x30 φ x L mm
No load 2450 RPM/V
Max. current 12 A
Current at max. efficiency 1,8 - 12 A
Number of cells 4 - 20
Max. diameter 28 mm
Diameter of shaft 3,2 mm
Max speed 55 000 revolution/min

ACn 16/7/8

New brushlees elektromotor MEGA ACn 16/7/8 electromotor with using for very quick model up to 500 g ( as direct drive) and aswell with specially MEGA microgear for model for 3D flying, acrobatic model, slow flyers models.

Specification
Weight 48 g
No load current Io 0.5
Size 28x29 φ x L mm
No load 2125 RPM/V
Max. current 15 A
Current at max. efficiency 1,8 - 9 A
Number of cells 4 - 16
Max. diameter 28 mm
Electric sailplane min. weight 0.10 kg
Electric sailplane max. weight 0.60 kg
Aerobatic airplane min. weight 0.10 kg
Aerobatic airplane max. weight 0.40 kg
Recommended propeller for electric sailplane 6"
Recommended controller for electric sailplane 8 A
Recommended propeller for aerobatic airplane 6"
Recommended controller for aerobatic airplane 8 A
Diameter of shaft 3,2 mm
Recommended controller 9 A

ACn 16/7/10

Specification
Weight 48 g
No load current Io 0.45
Size 28x30 φ x L mm
No load 1700 RPM/V
Max. current 8 A
Current at max. efficiency 1,8 - 8 A
Number of cells 4 - 16
Max. diameter 28 mm
Aerobatic airplane min. weight 0.280 kg
Aerobatic airplane max. weight 0.560 kg
Diameter of shaft 3,2 mm

ACn 16/7/12

Specification
Weight 48 g
No load current Io 0.40
Size 28x30 φ x L mm
No load 1430 RPM/V
Max. current 6 A
Current at max. efficiency 1,8 - 6 A
Number of cells 4 - 24
Max. diameter 28 mm
Diameter of shaft 3,2 mm

ACn 16/7/17

Specification
Weight 48 g
No load current Io 0.35
Size 28x30 φ x L mm
No load 1000 RPM/V
Max. current 5 A
Current at max. efficiency 1,8 - 5 A
Number of cells 4 - 24
Max. diameter 28 mm
Diameter of shaft 3,2 mm

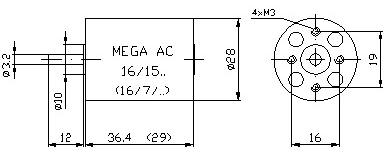

Dimensions
