Kalaë

Specifications:


Wing Span: 1.82 m (72")
Length: 1.08 m (43")
Wing Area:  dm2 ( po2)
Wing Airfoil: RG-15
Wing Loading:  g/dm2 ( oz/po2)
Flying Weight: 1.2 - 2.0 kg (42 oz - 71 oz)
Radio: 10 mm Micro servos in the wings. Micro servos and radio in the fuselage.
Motor Plettenberg Moskito 4G
to HP220/20/A2 P4 5:1

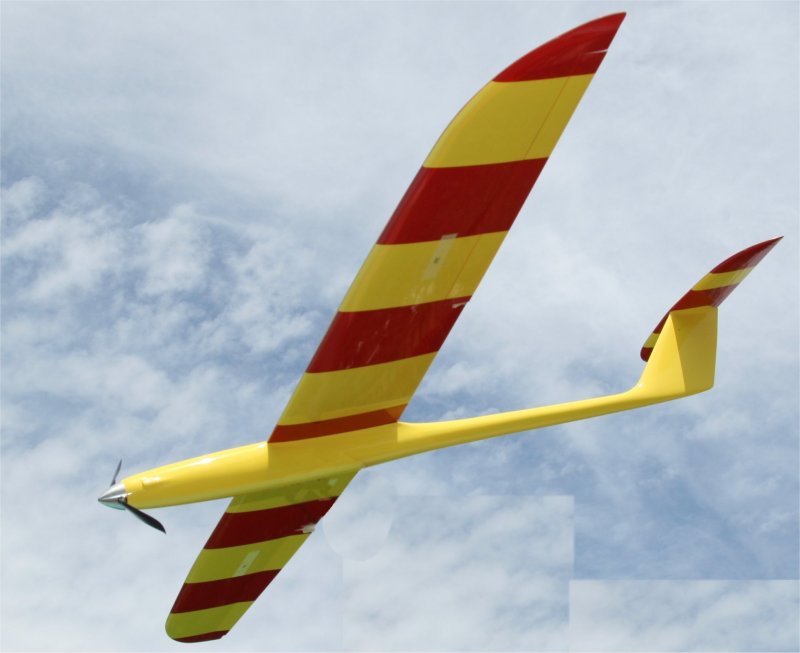

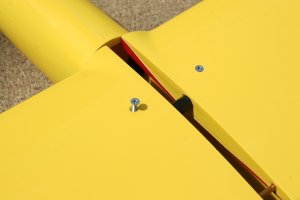

The Kalaë is a great sport hotliner. For transportability reason the wing is built in two pieces and joined by a carbon rod. Four screw hold the wings onto the fuselage, giving a rugged assembly. This is an all moulded hotliner which excels in high speed flying, but will do very well in thermal flight. Has the ability to accelerate quickly, go fast and retain energy in the turns. It's docile in handling allows the intermediate flyer to relax and have fun and fly and hunt thermals, or performing the full range of aerobatics. It features state of the art construction with all flying surfaces being hollow core moulded.

The RG-15 airfoils has proven to be very versatile thus combining low drag at high speed and good lift at lower speed range.

Access to the batteries is made by removing the wings, and the elevator servos is installed in the fin for precise control. Wings and fuselage are carbon reinforced for a sturdy and clean airframe.



Kit content:
A strong fibreglass fuse carbon reinforced, molded T-tail elevator that bolts the fin. Strong hollow core moulded two piece wings, that bolts down to the fuselage. All control surfaces are gapless hinged.  A full hardware package and instructions complete kit. Requires (2) HS125MG and (1) DS281 servo.
Optional is a kit with carbon D-box reinforced wings.



Kalaë two piece wings, price: 369.00 U$
Kala
ë two piece wings, carbon D-box, price: 409.00 U$, on sale 389.00 $ US

Following options and accessories are also available:

  • Combo package with power setup
  • Custom paint scheme.
  • Servo package
